Getting Started

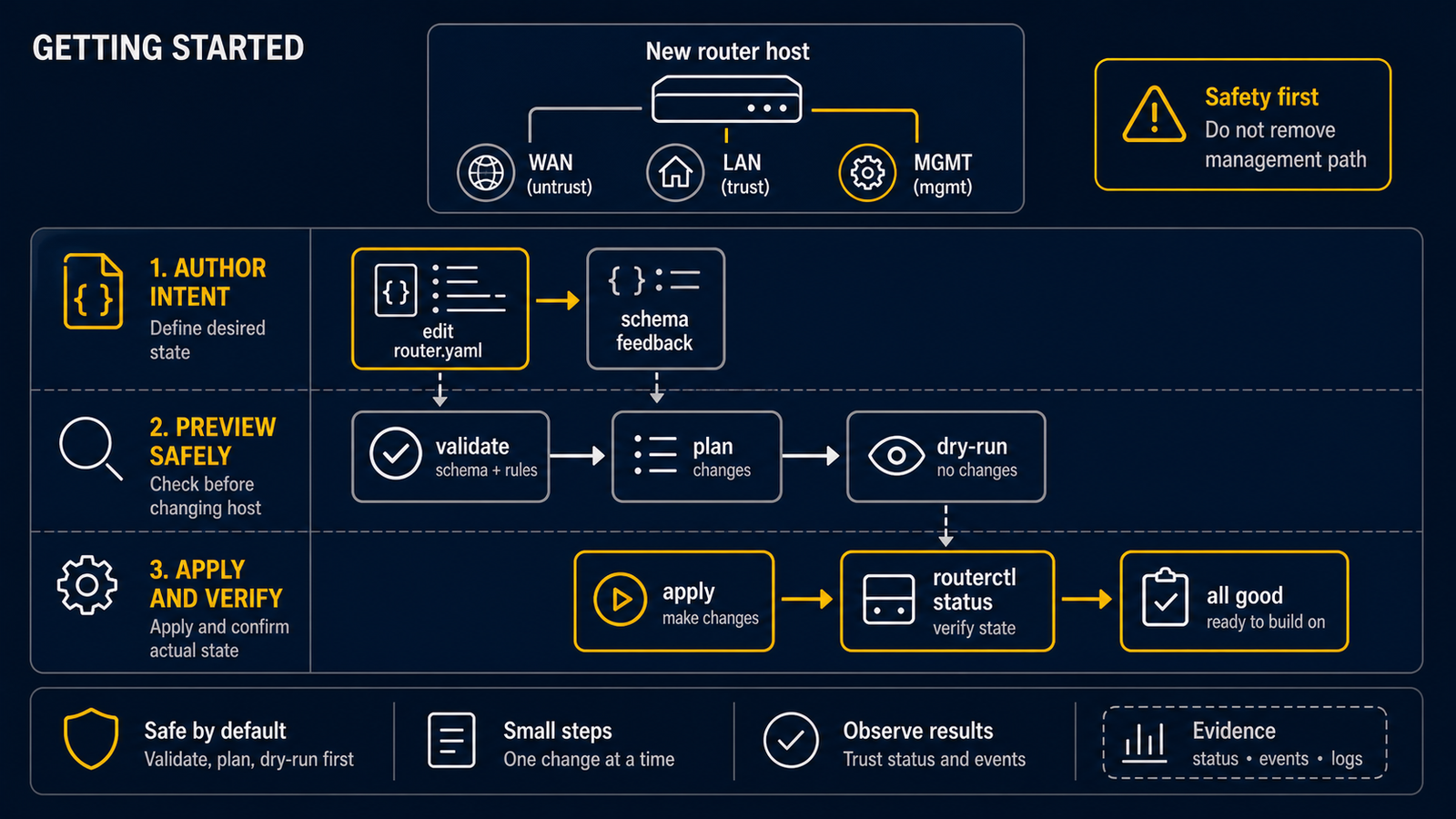

This tutorial walks through the smallest useful routerd workflow on a host with one WAN interface and one LAN interface. It starts by receiving a DHCPv4 address on the WAN side, then adds a static LAN address, and only then moves toward installing and running routerd.

routerd is still v1alpha1 software. Start in a lab VM or a host with console access before applying it to a remote router.

1. Build routerd​

make build

The build creates:

  • bin/routerd
  • bin/routerctl

2. Identify WAN And LAN Interfaces​

Start with the physical shape of the machine. In the examples below, wan points at an upstream network and lan points at the downstream client network. Replace the interface names with the names from your host:

ip link

For example, a small router VM might use:

  • WAN: ens18
  • LAN: ens19

routerd configs use stable resource names such as wan and lan, while spec.ifname maps those names to real operating system interfaces.

3. First Building Block: WAN DHCPv4​

The first useful resource pair is an Interface plus an IPv4DHCPAddress. This asks routerd to bring the WAN interface up and receive an IPv4 address from the upstream network:

apiVersion: routerd.net/v1alpha1
kind: Router
metadata:
  name: first-router

spec:
  resources:
    - apiVersion: net.routerd.net/v1alpha1
      kind: Interface
      metadata:
        name: wan
      spec:
        ifname: ens18
        adminUp: true
        managed: true

    - apiVersion: net.routerd.net/v1alpha1
      kind: IPv4DHCPAddress
      metadata:
        name: wan-dhcp4
      spec:
        interface: wan
        client: dhclient
        required: true

The repository includes the same shape in examples/basic-dhcp.yaml. Validate and inspect it before changing any network state:

routerd validate --config examples/basic-dhcp.yaml
routerd reconcile --config examples/basic-dhcp.yaml --once --dry-run

The dry-run output is JSON status. It tells you which resources are healthy, which are drifted, and what routerd would do.

4. Add The LAN Address​

Once the WAN side is understandable, add the LAN interface as a separate building block. A minimal LAN side only needs an Interface and an IPv4StaticAddress:

    - apiVersion: net.routerd.net/v1alpha1
      kind: Interface
      metadata:
        name: lan
      spec:
        ifname: ens19
        adminUp: true
        managed: true

    - apiVersion: net.routerd.net/v1alpha1
      kind: IPv4StaticAddress
      metadata:
        name: lan-ipv4
      spec:
        interface: lan
        address: 192.168.160.3/24
        exclusive: true

At this stage the host is not yet a full router for clients. DHCP service, DNS, NAT, IPv6 PD, DS-Lite, PPPoE, and route policy are later resources. Keeping each piece separate makes the plan easier to review.

5. Install The Source Layout​

routerd defaults to a /usr/local layout:

sudo make install
sudo install -m 0644 examples/basic-dhcp.yaml /usr/local/etc/routerd/router.yaml

Important default paths:

  • Config: /usr/local/etc/routerd/router.yaml
  • Binary: /usr/local/sbin/routerd
  • Plugins: /usr/local/libexec/routerd/plugins
  • Runtime: /run/routerd
  • State: /var/lib/routerd

6. Reconcile Once​

Always run one-shot mode before enabling the daemon:

sudo /usr/local/sbin/routerd reconcile \
  --config /usr/local/etc/routerd/router.yaml \
  --once \
  --dry-run

Remove --dry-run only after the plan is expected.

7. Enable The Daemon​

Install the systemd unit after the one-shot run looks correct:

sudo make install-systemd
sudo systemctl daemon-reload
sudo systemctl enable --now routerd.service

routerd serve keeps a local control API socket under /run/routerd/ and runs scheduled reconciliation.
