Apply and render

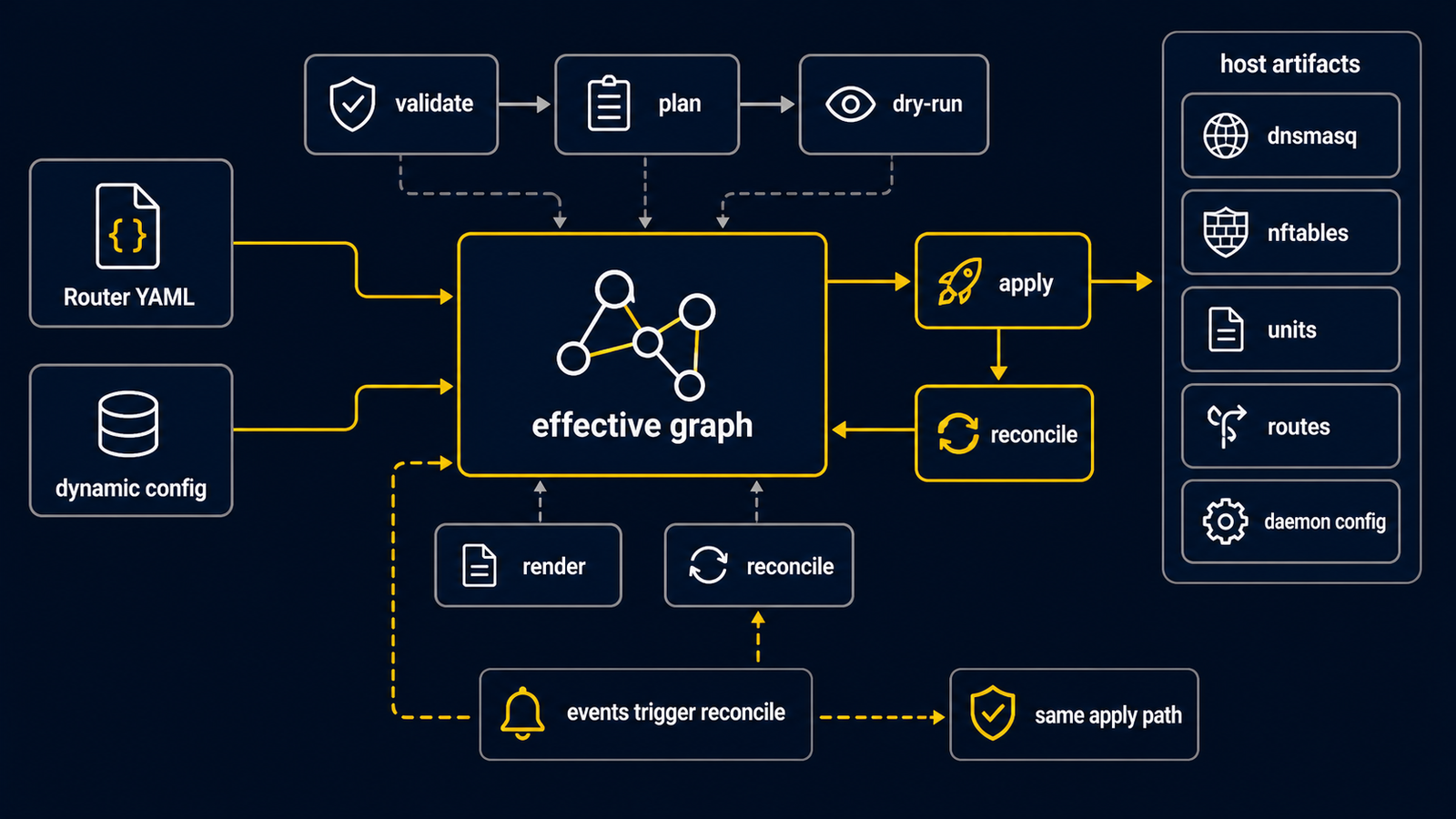

There are two ways to work with a routerd configuration. The important first question is whether routerd is already running as a service.

Situation	Use	What it does
Before the service exists	routerd validate --config FILE	Reads and validates a YAML file directly.
Before a live change	routerd apply --config FILE --once --dry-run	Builds the desired work without committing host changes. Use explicit temporary state paths for a first lab.
Service already running	routerctl validate, routerctl plan, routerctl apply	Sends a candidate file to the local routerd daemon through a Unix socket.

Validate a file directly

routerd validate --config /path/to/router.yaml

This is the safe first validation command. It does not need a running routerd.service.

Preview without committing a network change

For a first lab, keep every generated state file in a new temporary directory:

workdir=$(mktemp -d)
routerd apply --config /path/to/router.yaml --once --dry-run \
  --state-file "$workdir/state.db" \
  --ledger-file "$workdir/ledger.db" \
  --status-file "$workdir/status.json"

This is a preview, not a permission to apply the configuration to a production router. Read the result, then remove the temporary directory when finished.

Live one-shot apply

routerd apply --once changes the host and exits. Use it only from a console or an independent management path after reviewing the configuration:

sudo routerd apply --config /usr/local/etc/routerd/router.yaml --once

Run the service and use routerctl

routerd serve is the long-running reconcile loop. The packaged service starts it for normal deployments:

sudo systemctl enable --now routerd.service
sudo routerctl get status

Once the service is running, routerctl is the local control client. For example, a plan asks the daemon what it would change for a candidate file:

sudo routerctl plan -f /usr/local/etc/routerd/router.yaml --replace

routerctl apply asks that daemon to make a live update. It is not a standalone one-shot host command, and neither routerctl plan nor a repeated plan is a dry-run apply.

Interpreting a partial apply failure

An apply error can occur after the canonical configuration has been replaced. The error and daemon log include stage, generation, canonical, durabilityConfirmed, terminal-record flags, and the confirmed runtime epoch. Healthy describes a dataplane observation; it does not confirm persistence.

Failure point	Canonical configuration	Runtime and completion
Before replacement	Previous configuration	A changed runtime is restored if possible; a failed restoration reports the actual fallback or unavailable state.
After rename, during chmod/directory sync	New configuration is visible	New runtime is retained; durability is unconfirmed.
Terminal generation UPDATE	New configuration	New runtime is retained; the command/API fails without emitting a normal success result.
Result/status output	New configuration	The completed generation remains completed; output failure is returned.

The daemon retains failed configuration-attempt diagnostics in memory, including when SQLite cannot record them. A successful scheduled observation does not clear those diagnostics; a subsequent configuration operation must resolve the failure. This memory does not survive a process restart. Inspect the error, canonical YAML, generation history and controller status before retrying. These contracts do not promise rollback of all OS changes or power-loss durability on every filesystem.

A runtime reload accepted by the supervisor retains exclusive mutation ownership until its completion acknowledgement, even if the request context expires. If preparation does not cooperate with cancellation, new mutations are fenced and serve is asked to stop. There is no hard completion-time guarantee for a stuck builder. A confirmed generation belongs to serve, not to the HTTP request context.

--no-reconcile deliberately commits configuration without changing the running generation. Standby keeps the existing HA behavior and skips canonical commit and host mutation. Dry-run creates no production generation or canonical change.

Dry-run snapshots copy object statuses, state variables and dynamic desired parts from one SQLite read transaction, preserving timestamps, expiry, source, generation, digest and withdrawal intent. Debug logs contain an input manifest with the candidate hash and evaluation time, without payloads. Jobs, event cursors, event/action journals, federation history and generation history are excluded. Host observations and controller evaluation are not frozen; execution still checks TTL and ownership. The manifest is an account of acquired inputs, not authorization to apply them later.

Render

When this documentation says "render", it means routerd produces host-side files such as a dnsmasq configuration, an nftables ruleset, a systemd unit, or a NixOS module. Whether those files reach the host depends on the operation: validation only checks the description; a dry-run previews; a live apply or serve reconciliation can update the host.

In current routerd, dnsmasq provides DHCPv4, DHCPv6, relay, and RA rendering. DNS listening, local zones, conditional forwarding, and encrypted DNS are handled by DNSResolver and routerd-dns-resolver.

Reconcile

In serve mode, routerd consumes events and re-evaluates affected resources. The shrinking difference between the description and the observed host is called reconcile. For example, after a DHCPv6-PD renewal changes a prefix, routerd can update the derived LAN address, RA, DNS answers, and DS-Lite path in order.
