Log Storage

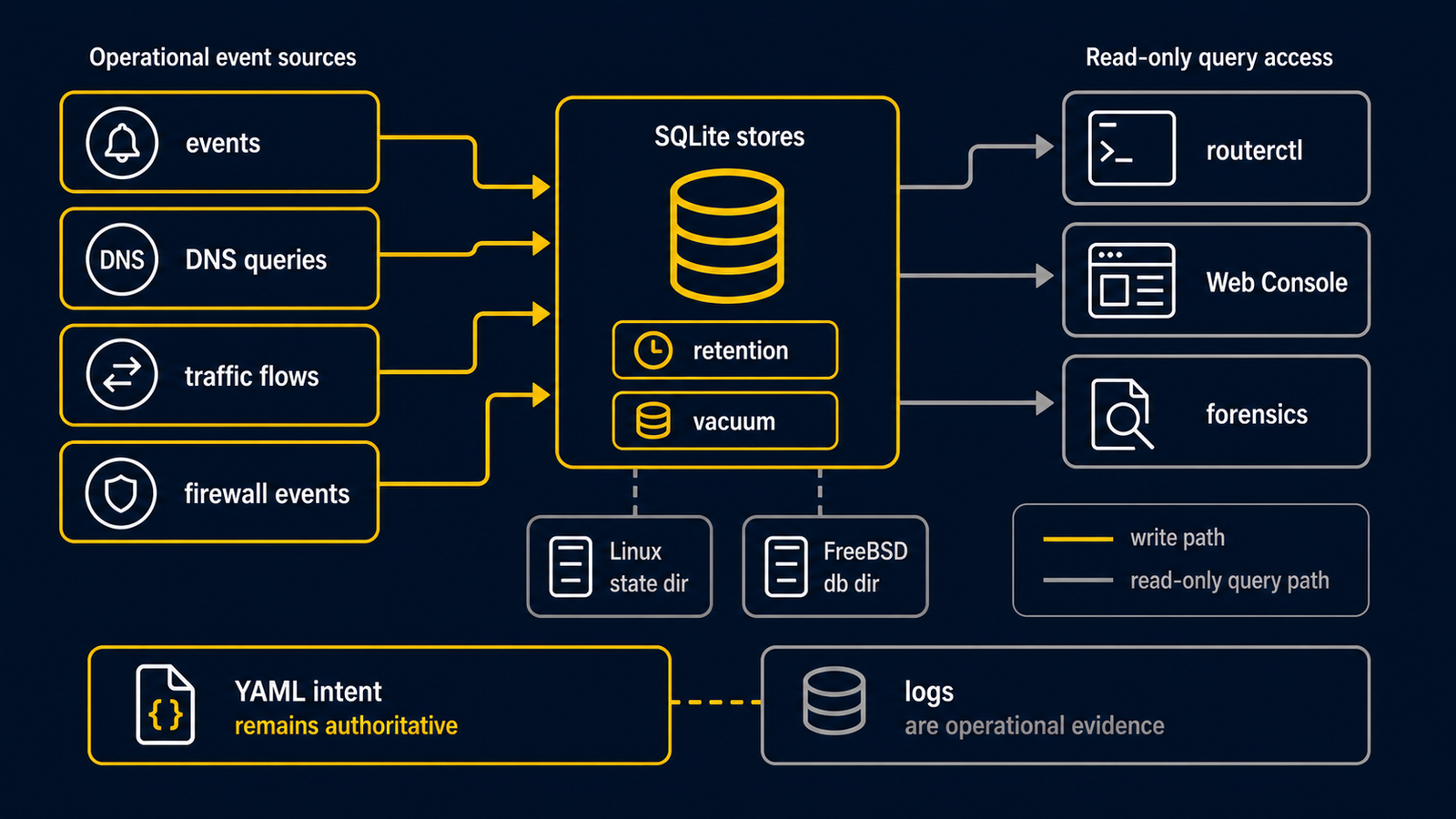

routerd keeps long-lived state separate from operational logs.

The Linux default layout is:

File	Purpose	Typical retention
/var/lib/routerd/routerd.db	resource state plus event, access-log, and plugin-run log tables	30 days for log tables
/var/lib/routerd/dns-queries.db	DNS query rows from routerd-dns-resolver	30 days
/var/lib/routerd/traffic-flows.db	conntrack-derived traffic flows	30 days
/var/lib/routerd/firewall-logs.db	firewall accept/drop/reject rows	90 days
/var/lib/routerd/dhcp-fingerprints.db	DHCP client fingerprint observations	30 days

FreeBSD keeps the same database names under /var/db/routerd.

The log tables use column names that can be mapped to OpenTelemetry log attributes. nDPI and TLS SNI columns are reserved in traffic-flows.db, even when no writer fills them yet.

LogRetention is the sole local SQLite retention policy. It removes old rows by signal and can run SQLite incremental vacuum. It no longer exposes database paths or per-writer retention in user config; routerd derives the event, DNS query, traffic flow, firewall event, DHCP fingerprint, access-log, and plugin-run stores from the registered log-table catalogue. New operational log tables must register their signal and timestamp column in that catalogue before they can be retained.

dhcp-sticky.db, lease replication data, configuration generations, and federation state are operational state, not logs. They are intentionally not eligible for LogRetention, because deleting them can change router behaviour.

Specify LogRetention.spec.sinks to archive rows to named LogSink resources before local deletion. A failed archive prevents deletion, so the local copy is not removed before the external destination acknowledges it.

apiVersion: system.routerd.net/v1alpha1
kind: LogRetention
metadata:
  name: default
spec:
  retention: 30d
  schedule: daily
  vacuum: true
  signals:
    - events
    - accessLogs
    - pluginRuns
    - dnsQueries
    - trafficFlows
    - dhcpFingerprints
  sinks:
    - LogSink/local-syslog
---
apiVersion: system.routerd.net/v1alpha1
kind: LogRetention
metadata:
  name: firewall-events
spec:
  retention: 90d
  schedule: daily
  vacuum: true
  signals:
    - firewallEvents

Inspection commands:

routerctl get dns-queries --limit 100
routerctl get traffic-flows --limit 100
routerctl get firewall-logs --limit 100
