USB persistence

The routerd live ISO can run as a diskless router. In that mode, the ISO keeps the active system in RAM and stores only the selected router state on a USB device.

This is intended for mini PCs that boot from removable media. It avoids a permanent internal disk while still preserving the router configuration across reboots.

Layout

When USB persistence is enabled, routerd uses this layout on the selected partition:

routerd/
  router.yaml
  usb-device
  usb-flush-enabled
  log-limit
  secrets/
  logs/
  state/

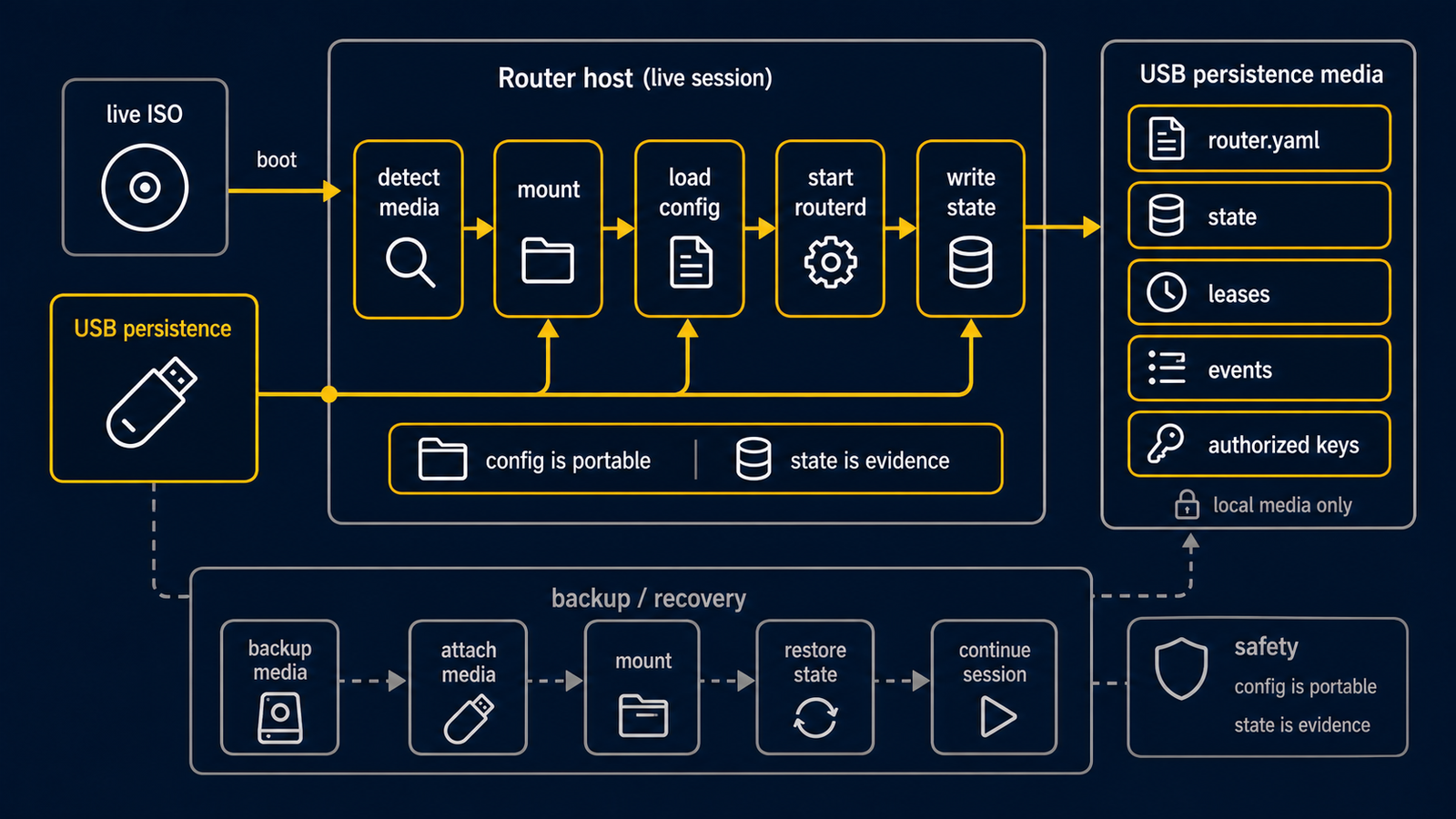

At boot, /usr/share/routerd/live-persistence.sh init tries to find config media. It first checks the remembered device, then routerd.usb= on the kernel command line, then devices labeled ROUTERD_CONFIG or ROUTERD. Writable partitions are used for persistence. Read-only ISO9660/UDF CD-ROM media, such as a Proxmox media=cdrom config ISO, are accepted for config import only.

The selected partition is mounted at /media/routerd-usb. The helper looks for host-specific configs first, then a generic config:

• /media/routerd-usb/routerd/hosts/<hostname>.yaml
• /media/routerd-usb/routerd/hosts/<mac>.yaml with either colon-separated or compact lowercase MAC address
• /media/routerd-usb/routerd/router.yaml

If a config is found, it is copied to /usr/local/etc/routerd/router.yaml and applied by the live ISO startup path. The source and SHA256 are recorded in /run/routerd/live-config-source and /run/routerd/live-config-sha256 for acceptance tests and troubleshooting. Secrets are restored before apply. The helper accepts these layouts, in order:

• routerd/hosts/<hostname>/secrets/
• routerd/hosts/<mac>/secrets/ with either colon-separated or compact lowercase MAC address
• routerd/secrets/

Files are installed under /usr/local/etc/routerd/secrets with mode 0600. If no saved config is found and /usr/local/etc/routerd/router.yaml is still missing, the ISO starts the configure wizard.

Filesystems

The live helper detects the filesystem with blkid and mounts it with filesystem-specific options.

Filesystem	Default mount options	Notes
ext4	rw,async,noatime	Best choice for persistent router use.
vfat	rw,async,noatime,utf8,shortname=mixed	Useful for simple removable media. No Unix permissions.
exfat	rw,async,noatime	Useful for larger USB sticks shared with desktop OSes.
iso9660 / udf	ro,noatime	Read-only config import media. Persistence flush is disabled.

FAT32 normally appears as vfat in blkid output. The live helper does not force a FAT32 mount first; it detects the filesystem type and then chooses the matching options.

async,noatime is the default because it reduces write pressure on USB flash. For debugging or very conservative flush behavior, pass this kernel parameter:

routerd.usb_mount=sync

Use routerd.usb_mount=async to force the default explicitly.

Log buffering

Runtime logs are buffered in tmpfs:

/run/routerd/logs

The default buffer limit is 100 MiB. When the buffer grows beyond the limit, the oldest files are removed first.

If the daily flush job is enabled, /etc/periodic/daily/routerd-usb-flush copies these artifacts to USB:

• current router.yaml
• files under /usr/local/etc/routerd/secrets
• state archive from /var/lib/routerd
• state archive from /var/db/routerd
• compressed log archive from /run/routerd/logs

You can flush manually:

/usr/share/routerd/live-persistence.sh flush

Safe removal

Do not pull the USB device while the persistence mount is active. Ask the live helper to flush and unmount it first:

/usr/share/routerd/live-persistence.sh flush
/usr/share/routerd/live-persistence.sh umount

Check the current state with:

/usr/share/routerd/live-persistence.sh status

If the device is removed unexpectedly, routerd keeps running from RAM. The live helper logs a warning and stops treating the USB path as durable until the device is reinserted and mounted again.

Alpine lbu

The ISO includes Alpine lbu. The live helper adds routerd paths to the lbu include list:

/usr/local/etc/routerd
/var/lib/routerd
/var/db/routerd
/etc/periodic/daily/routerd-usb-flush

The helper runs lbu commit after saving config or flushing state. You normally do not need to run lbu directly.

Useful commands

List candidate devices:

/usr/share/routerd/live-persistence.sh list-devices

Save a config to USB:

/usr/share/routerd/live-persistence.sh save-config /dev/sdb1 /usr/local/etc/routerd/router.yaml yes 100M

save-config also copies /usr/local/etc/routerd/secrets to routerd/secrets/ on the persistence device when that directory exists. Use root-owned secret files and avoid vfat/exfat for long-lived secret storage when you need Unix permissions on the removable device itself.

Restore happens automatically at boot. To force the boot-time logic from a shell:

/usr/share/routerd/live-persistence.sh init
