CloudEdge SAM: OCI Ubuntu image firewall bootstrap

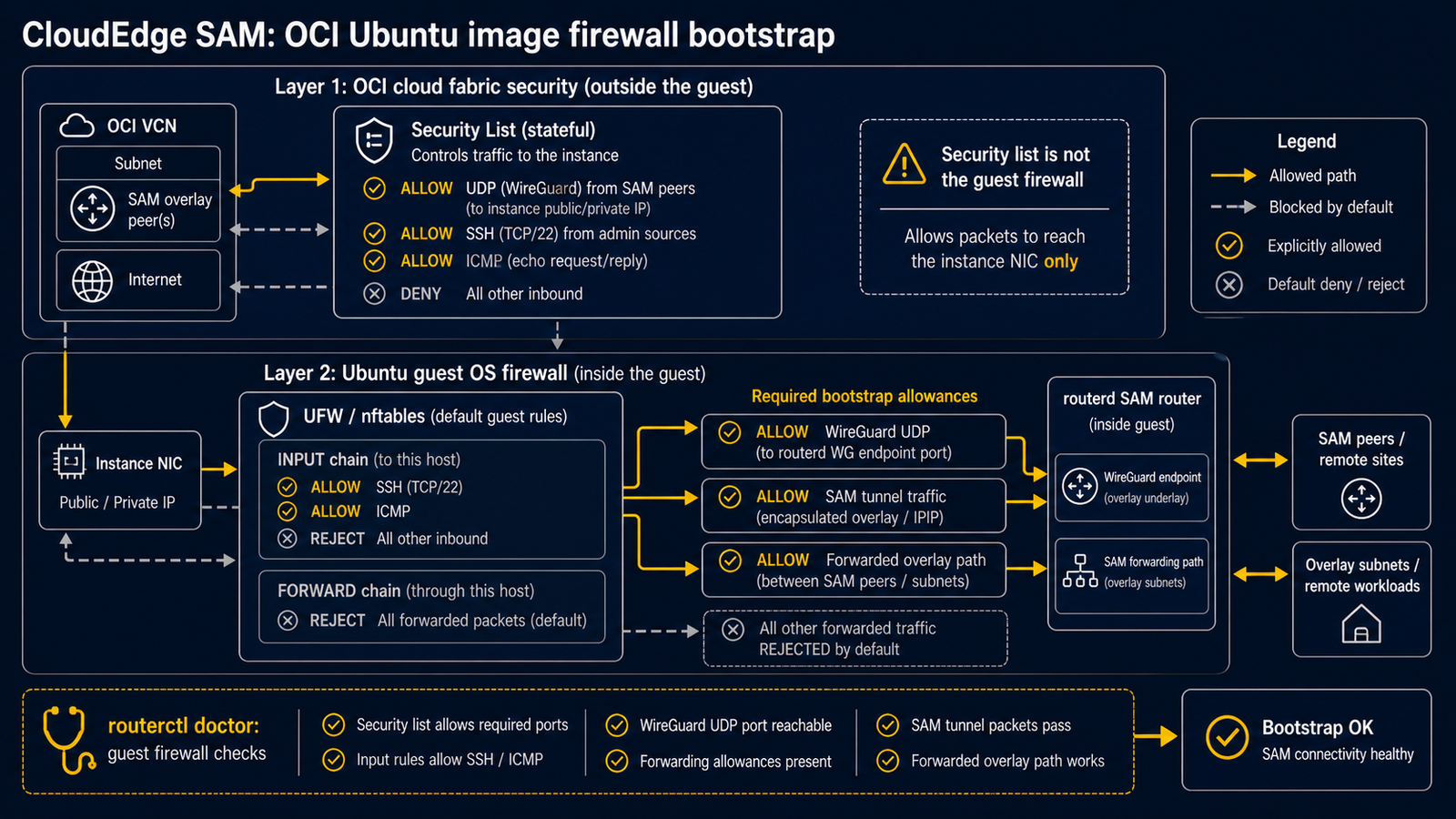

Diagram showing OCI Ubuntu guest firewall defaults blocking WireGuard and SAM forwarding, required bootstrap allowances, and routerctl doctor checks

Experimental (CloudEdge SAM). This documents provider-image host firewall behavior seen on OCI Canonical Ubuntu images used as SAM routers, and the routerd-owned allowances that must converge on a clean host.

Symptom​

On OCI, the Canonical Ubuntu 24.04 image boots with iptables-nft filter rules that reject inbound traffic except SSH/ICMP and reject all FORWARD traffic. With these defaults a SAM router will:

  • receive no WireGuard handshake even though the OCI security list allows UDP/51820 and the VNIC has skipSourceDestCheck=true — the host firewall drops the inbound WireGuard packets before they reach the wg-hybrid listener;
  • not forward captured/overlay traffic — the default FORWARD reject blocks the SAM delivery path between the VNIC interface and wg-hybrid.

This is independent of the cloud security list / VNIC source-dest-check, which operate at the fabric layer; the guest OS firewall is a separate layer that must also permit the SAM paths.

Required allowances (guest OS)​

On each OCI SAM router, the host firewall must permit:

  • inbound UDP/51820 to the wg-hybrid WireGuard listener;
  • FORWARD between the OCI VNIC interface (e.g. ens3) and wg-hybrid in both directions.

WireGuardInterface.spec.listenPort is routerd-owned on Linux: the WireGuardInterface controller ensures an INPUT accept rule for that UDP port and reports the result in WireGuardInterface.status.hostFirewall.

Forwarding allowances remain path-specific. For managed capture paths, RemoteAddressClaim owns the capture-interface-to-tunnel FORWARD opening that it needs. Until the full CloudEdge SAM path is green on clean OCI hosts, keep routerctl doctor hybrid in the acceptance gate so image-level reject-all FORWARD rules are detected instead of becoming a silent dataplane failure.

Diagnosing it​

routerctl doctor hybrid surfaces guest-firewall reject-all FORWARD/INPUT patterns that would block the WireGuard / SAM paths. routerctl describe WireGuardInterface/<name> also shows whether the listen-port opening was applied through status.hostFirewall. Run both on the OCI router after deploy:

routerctl doctor hybrid
routerctl describe WireGuardInterface/wg-hybrid

If the WireGuard endpoint shows no handshake while the peer is sending keepalives, check the guest firewall first (this how-to), then the OCI security list, then the VNIC source-dest-check.

  • Selective Address Mobility
  • OCI Ubuntu images differ from AWS/Azure images in their default iptables-nft posture; AWS/Azure SAM smokes did not hit this because their images do not reject-all FORWARD by default.
