NAT44 session sync for HA routers

Use NAT44SessionSync when two routerd nodes share a LAN gateway role and the active node should keep selected NAT44 conntrack sessions warm on a standby node. It starts with a one-time conntrack snapshot safety net, then keeps a local conntrack event reader running and sends incremental batches.

Gate the resource with spec.when so only the active node exports sessions. For VRRP-based failover, the usual gate is the local VirtualAddress role.

Sync selected NAT rules

Reference the NAT rules whose SNAT addresses should be mirrored. Dynamic SNAT addresses are read from NAT44Rule status, so run the NAT44 controller before expecting session sync to become active.

- apiVersion: net.routerd.net/v1alpha1
  kind: NAT44SessionSync
  metadata:
    name: dslite-abc-sessions
  spec:
    mode: event-stream
    natRules:
      - NAT44Rule/lan-to-dslite-a
      - NAT44Rule/lan-to-dslite-b
      - NAT44Rule/lan-to-dslite-c
    excludeNatRules:
      - NAT44Rule/lan-to-dslite-ra
    targets:
      - name: standby
        host: routerd-standby.lan.example
        user: routerd
        restoreCommand: [sudo, conntrack]
    when:
      state:
        VirtualAddress/lan-vip.role:
          equals: master

You can also provide snatAddresses directly when the addresses are static:

spec:
  snatAddresses: [192.0.0.2, 192.0.0.3, 192.0.0.4]

Preserve established TCP with conntrackd

Use mode: conntrackd when established TCP flows must survive a VRRP role change. Both peers run conntrackd continuously, so this mode must not use spec.when.

Linux conntrack must accept the small TCP window mismatch that can occur when an in-flight segment reaches the new active peer. Declare that host prerequisite explicitly; routerd does not change it from a VRRP hook:

- apiVersion: system.routerd.net/v1alpha1
  kind: Sysctl
  metadata:
    name: conntrack-tcp-ha-liberal
  spec:
    key: net.netfilter.nf_conntrack_tcp_be_liberal
    value: "1"
    runtime: true
    persistent: true

- apiVersion: net.routerd.net/v1alpha1
  kind: NAT44SessionSync
  metadata:
    name: dslite-sessions
  spec:
    mode: conntrackd
    snatAddresses: [192.0.2.2]
    conntrackd:
      interface: ha-sync
      localAddress: 192.0.2.10
      peerAddress: 192.0.2.11
      port: 3780

Validation rejects Linux conntrackd mode unless a runtime, non-optional Sysctl declares net.netfilter.nf_conntrack_tcp_be_liberal=1. persistent: true is recommended so the prerequisite is also present before routerd starts after a reboot.

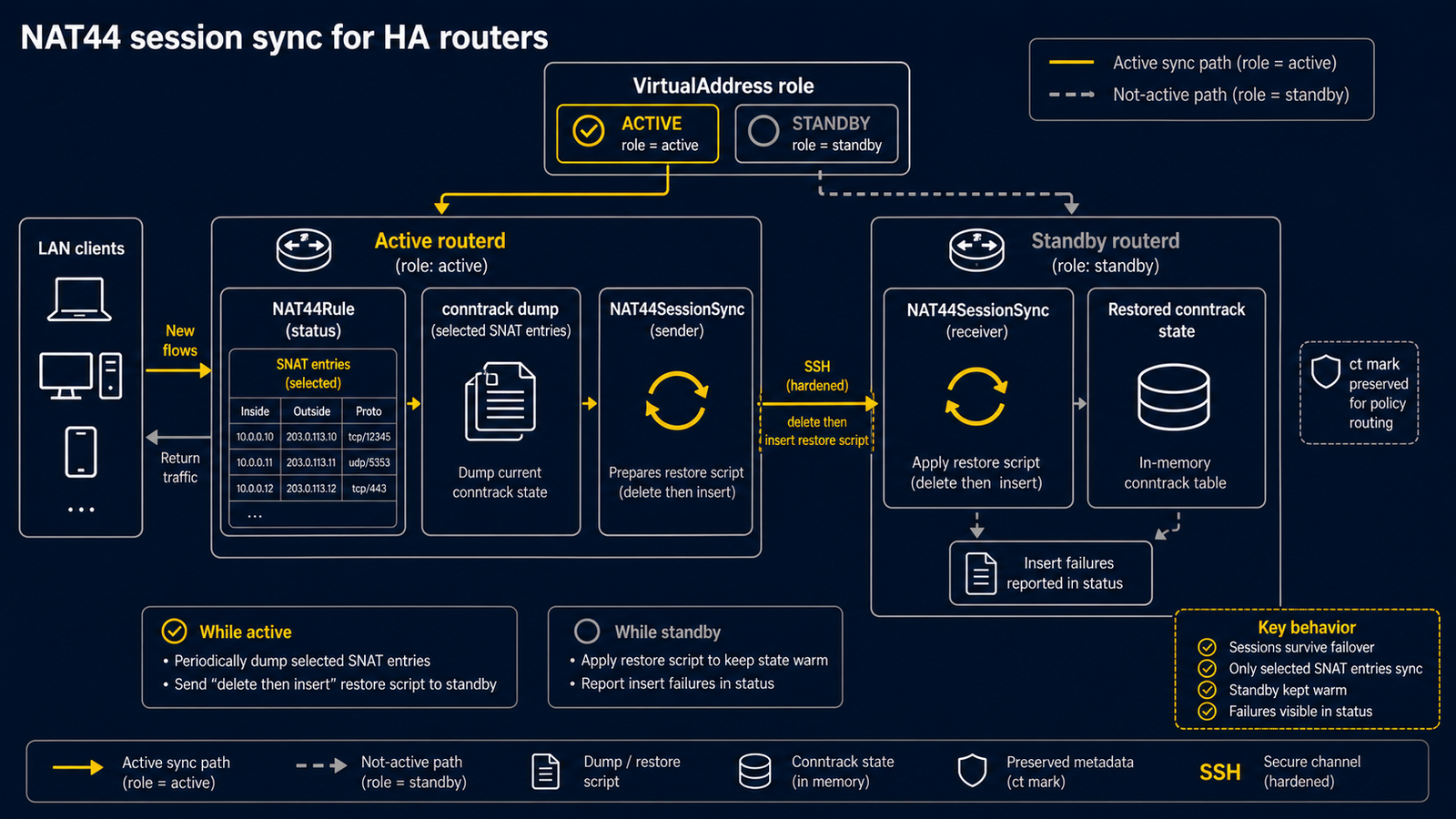

How restore works

The controller runs:

conntrack --dump -o extended -n <snat-address>

extended output includes the conntrack mark. routerd converts each line into a delete-then-insert restore script and sends it over SSH. Preserving ct mark matters when policy routing uses conntrack marks to keep an existing flow on the same egress path.

restoreCommand defaults to [conntrack]. Use [sudo, conntrack] when the target user needs privilege elevation.

Event stream operation

NAT44SessionSync always keeps a local conntrack -E -o extended reader alive and sends incremental create/update/destroy batches.

On startup and after local stream loss, the target first receives a full snapshot resync. Only after that resync completes is the resource reported as Synced.

spec:
  mode: event-stream
  natRules:
    - NAT44Rule/lan-to-dslite-a
  targets:
    - name: standby
      host: routerd-standby.lan.example
      user: routerd
      restoreCommand: [sudo, conntrack]

The operational differences are:

• lower steady-state ssh and conntrack process churn;
• lower failover warm-up delay for active sessions;
• status that reports stream state, queue depth, last event time, last batch time, last resync time, and resync count;
• explicit fallback to snapshot resync when stream integrity is uncertain.

The first event stream implementation still uses the existing SSH restore path for each event batch. Long-lived target restore sessions can be added later if the batch restore path becomes the next bottleneck.

See ADR 0016 for the design and migration plan.

Check it

routerctl describe NAT44SessionSync/dslite-abc-sessions
routerctl doctor nat
routerd serve --controllers nat44-session-sync --config router.yaml

When spec.when is false, status stays Pending with reason WhenFalse. When a referenced NAT44Rule has not resolved snatAddress yet, status stays Pending with reason SNATAddressPending.

For conntrackd mode, routerctl doctor nat fails when the runtime nf_conntrack_tcp_be_liberal value is not 1 or cannot be read. With --no-host, this check is reported as skip.
