Firewall rate limits and ICMP rules

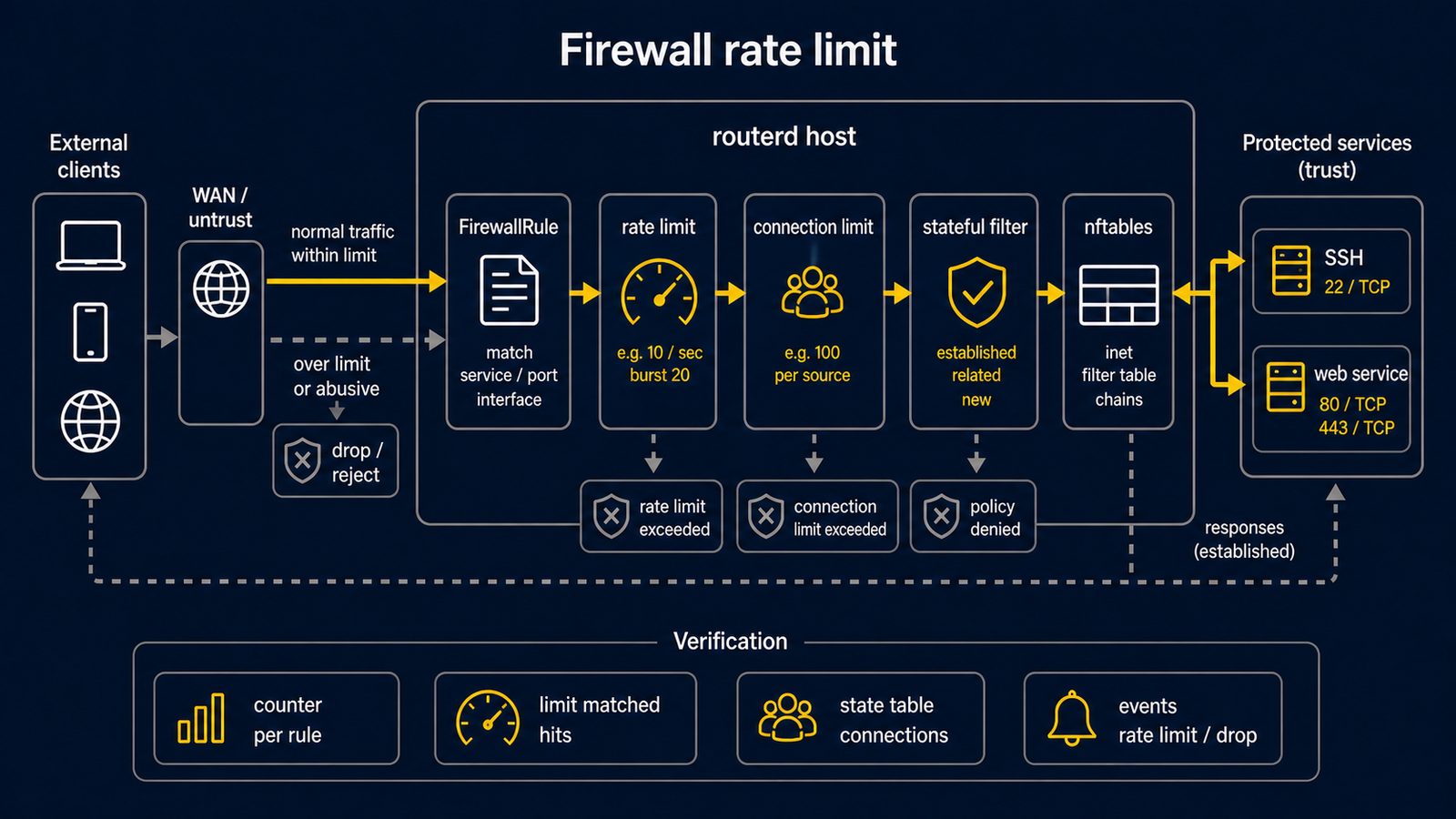

Diagram showing WAN traffic classes, FirewallRule rate and connection limits, and generated stateful nftables filtering

This example shows stateful FirewallRule expressions for a small router:

  • allow HTTP and HTTPS on the router with one multi-port rule
  • allow only ICMP echo requests from the WAN
  • reject SSH attempts that exceed a packet rate or per-source connection limit

The complete YAML is in examples/firewall-rate-limit.yaml.

Firewall groundwork

These rules are an example of routerd's current firewall groundwork, not a complete Internet-security policy. Test them on an isolated host and do not use them as the only protection for a reachable router.

Apply sequence​

routerd validate --config examples/firewall-rate-limit.yaml

workdir=$(mktemp -d)
routerd apply --config examples/firewall-rate-limit.yaml --once --dry-run \
  --state-file "$workdir/state.db" \
  --ledger-file "$workdir/ledger.db" \
  --status-file "$workdir/status.json"
rm -rf "$workdir"

Rule excerpt​

- apiVersion: firewall.routerd.net/v1alpha1
  kind: FirewallRule
  metadata:
    name: ssh-bruteforce-over-limit
  spec:
    fromZone: wan
    toZone: self
    protocol: tcp
    destinationPorts:
      - "22"
    action: reject
    rateLimit:
      rate: 8
      burst: 16
      unit: packet
      per: minute
      log: true
    connLimit:
      maxPerSource: 4
      log: true
