DS-Lite home gateway

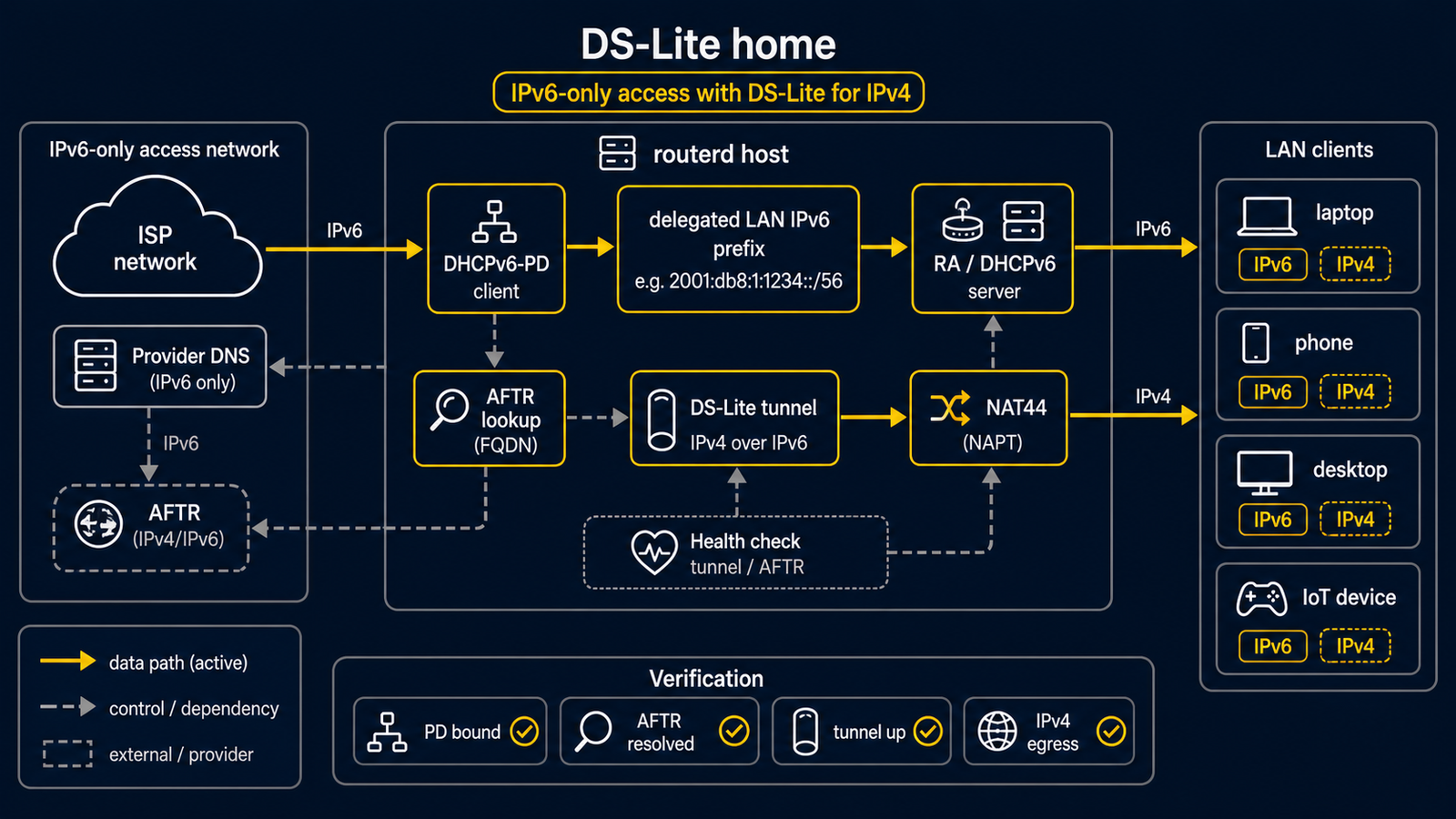

Diagram showing an IPv6 WAN prefix, a DS-Lite tunnel, and LAN IPv4 plus delegated IPv6 services

DS-Lite is for an IPv6-first access line where IPv4 packets leave through an ISP tunnel. This is an ISP-specific, advanced example—not a first router tutorial. Test it from a console or independent management path: a wrong WAN, tunnel, or DNS setting can interrupt connectivity.

The complete, validated YAML is examples/example-dslite-home.yaml. Its Transix-like AFTR values are placeholders. Replace them with facts from your own access line.

What the example builds​

JobActual resource names in the YAML
Receive an IPv6 delegated prefixDHCPv6PrefixDelegation/wan-pd
Give the LAN a derived IPv6 addressIPv6DelegatedAddress/lan-v6
Answer DNS on the LANDNSResolver/lan, DNSZone/home
Build the IPv4-over-IPv6 tunnelDSLiteTunnel/transix
Give LAN clients IPv4, DNS, and IPv6 router informationDHCPv4Server/lan, IPv6RouterAdvertisement/lan

lan-v4, lan-v6, lan, and transix are names chosen by this file. They are not generic names that every routerd configuration must use.

Key configuration​

The prefix delegation and derived LAN IPv6 address are connected by name:

- apiVersion: net.routerd.net/v1alpha1
  kind: DHCPv6PrefixDelegation
  metadata:
    name: wan-pd
  spec:
    interface: wan
    profile: ntt-hgw-lan-pd

- apiVersion: net.routerd.net/v1alpha1
  kind: IPv6DelegatedAddress
  metadata:
    name: lan-v6
  spec:
    prefixDelegation: wan-pd
    interface: lan
    subnetID: "0"
    addressSuffix: "::1"
    announce: true

The tunnel then uses that same delegated address:

- apiVersion: net.routerd.net/v1alpha1
  kind: DSLiteTunnel
  metadata:
    name: transix
  spec:
    interface: wan
    tunnelName: ds-transix
    aftrFQDN: gw.transix.jp
    aftrDNSServers: [2404:1a8:7f01:a::3, 2404:1a8:7f01:b::3]
    localAddressSource: delegatedAddress
    localDelegatedAddress: lan-v6
    localAddressSuffix: "::100"
    defaultRoute: true

If your provider requires the WAN Router Advertisement address as the tunnel source instead, use the provider-approved localAddressSource setting rather than copying this one blindly.

The same local resource names are used by DNS, DHCPv4, and Router Advertisement:

- kind: DNSResolver
  metadata:
    name: lan
  # Listens on IPv4StaticAddress/lan-v4 and IPv6DelegatedAddress/lan-v6.

- kind: DHCPv4Server
  metadata:
    name: lan
  # Gives clients IPv4StaticAddress/lan-v4 as their gateway and DNS server.

- kind: IPv6RouterAdvertisement
  metadata:
    name: lan
  # Advertises IPv6DelegatedAddress/lan-v6 and DNSZone/home.

Read the complete YAML for the required spec fields; the short excerpts above only explain how the resource names connect.

Check before a daemon exists​

Copy the file, change every ISP-specific value, and run the standalone checks. They do not start a service or apply a network change.

cp examples/example-dslite-home.yaml router.yaml
LAB_DIR="$(mktemp -d)"
sudo routerd validate --config router.yaml
sudo routerd apply --config router.yaml --once --dry-run --skip-service-manager \
  --state-file "$LAB_DIR/state.db" \
  --ledger-file "$LAB_DIR/ledger.db" \
  --status-file "$LAB_DIR/status.json"

Confirm the WAN and LAN interface names, AFTR FQDN, resolver addresses, and management path. Stop if any of them are not yours.

Apply and observe​

Only from a console or independent management path, apply the reviewed file and then start or restart the service that owns it. After the service is running:

sudo routerctl get status
sudo routerctl describe DHCPv6PrefixDelegation/wan-pd
sudo routerctl describe IPv6DelegatedAddress/lan-v6
sudo routerctl describe DSLiteTunnel/transix
sudo routerctl describe FirewallZone/wan
ip -6 tunnel show
ip route show default

From a LAN client, check both address families and local DNS:

ip -6 addr
ip route
curl https://1.1.1.1/
dig router.home.example
